Usage: Packaging and weighting
Production capacity: 300-500 bags/hour
Power & Air Supply: AC220V 50Hz 0.4-0.8MPa
Packaging Error: 0.2%F.S
Applicable materials: Fertilizer powder and granules, grain, rice and so on
Automatic quantitative packaging for powdery materials in floor, starch, feed, fertilizer, food, chemical industry, light industry, building materials and other industries.
1.Accuracy: high precision weighing controller, good reliability. Good integrity, small floor aera, flexible and convenient installation.
2.Speed can be adjusted: the feeding mode of the powder feeding equipment is a spiral feeding, fast and slow feeding through the controller to achieve, feeding speed can be arbitrarily set.
3.Environmental protection operation: closed inner circulation system, effectively prevent dust from flying, improve the working environment, and protect the health of employees.
4.The structure is reasonable: the structure is compact, the volume is small, and can be made into a fixed or mobile body according to the requirement of the user.
The main technical parameters are shown in the table below:
| Device name | Technical parameter | DCS-25F |
| Computer quantitative scale | Weighing range | 10-25kg |
| Weighing speed | 200-3000/h | |
| Allowable error | 0.2% | |
| Equipped with power | 2.2kw | |
| Equipped with gas source | 0.4-0.6Mpa, 0.1m³/min | |
| Weight | 500kg | |
| Weighing control instrument | Nothing | GM8804C |

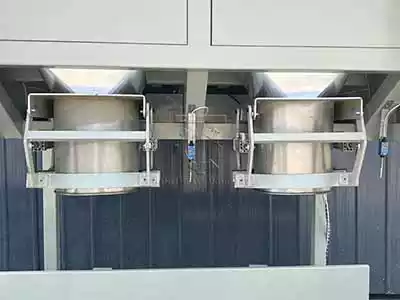

| Bag clamping mechanism | Weight | 60kg |

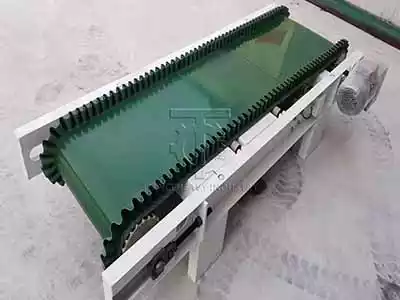

| Conveyor | Transmission distance | 2.0m |
| Equipped with power | 0.37kw | |
| Weight | 240kg | |
|
Slot machine |
Equipped with power | 0.55kw |
| Weight | 100kg | |
| Outline dimension | Outline dimension | 2332x1255x1058 |
| Weight | 450 |

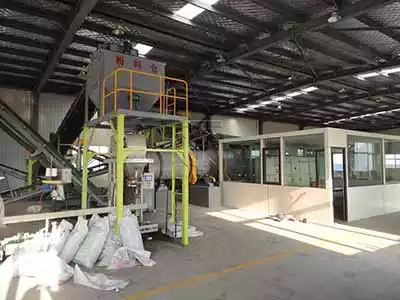

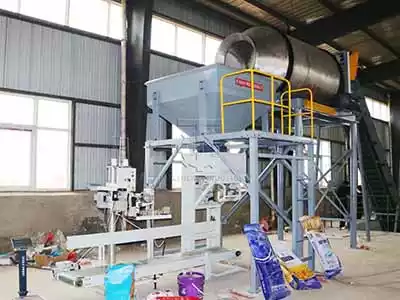

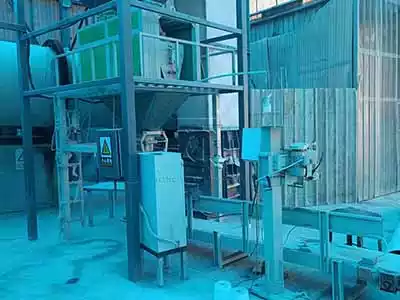

Packaging machine in the fertilizer production line:

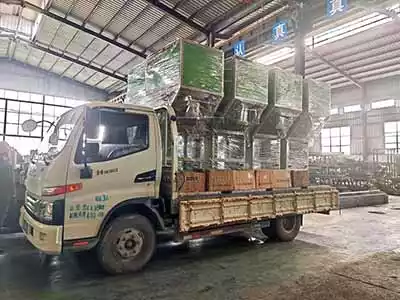

Package : wooden package or full 20GP/40HQ container
